How to Clean a Craftsman Lawn Mower Carburetor: Step-By-Step

It’s not unusual for a carburetor to stop functioning correctly because it has gummed up causing the fuel jet to become clogged or the float to become stuck. Old fuel can be the main cause of a carburetor not working. Making sure you’re running the right gas through your Craftsman mower and only using fresh gas will help minimize the negative effects on the carburetor.

Symptoms of a Bad Craftsman Mower Carburetor

When your carburetor is acting up, it is no longer able to correctly regulate the fuel to air mixture required by your Craftsman’s engine. You could experience these symptoms:

  • Craftsman mower won’t start
  • Craftsman backfires from running lean
  • Craftsman mower engine sputters and runs rough
  • Craftsman mower engine surges
  • Craftsman mower consumes too much fuel

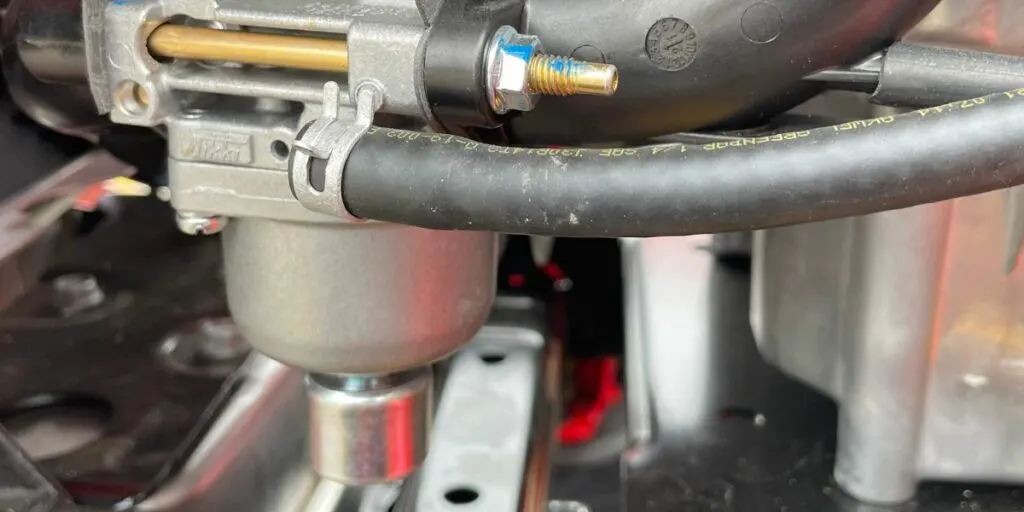

Clean a Craftsman small engine carburetor

This post may include affiliate links. Purchases made through these links may provide a commission for us, at no extra cost to you. As an Amazon Associate we earn from qualifying purchases.

Follow all safety instructions provided in your equipment operators manual prior to diagnosing, repairing or operating. Consult a professional if you don’t have the skills, knowledge or are not in the condition to perform the repair safely.

12 Steps to Clean a Craftsman Lawn Mower Carburetor

If you have a fuel system problem and have confirmed you are getting a good supply of fuel to the carburetor, perform one more step to confirm you need to disassemble and clean your carburetor.

Remove the air filter from the air filter housing. Spray carburetor cleaner into the air intake and start your Craftsman mower. If your mower starts, runs and then dies, you should disassemble your carburetor and clean it.

1. Gather Items Needed to Clean Your Craftsman Carburetor

  • Pliers
  • Screwdriver
  • Socket/ratchet set
  • Carburetor Cleaner
  • Thick wire
  • Needle nose pliers

2. Take Photos of Your Craftsman Mower Carburetor

Most people have a cell phone available nearby. It probably has a camera on it making photo taking a quick easy process. If you have one of these, you should use it to document steps. Even if you have a great memory, I highly recommend you take multiple photos of your carburetor before and during the tear down process.

You will be working with many small parts. It will be good to have photos to reference to make sure you put your carburetor back together the correct way. You’re better off taking these photos and not needing them over not having photos at all.

3. Shut off Your Craftsman Mower’s Fuel Supply

Stop the fuel flow on your Craftsman lawn mower. Use the fuel shut-off valve located on the bottom of your fuel tank. If you don’t have a valve on your mower, crimp the fuel line.

4. Remove Your Craftsman Lawn Mower Throttle & Choke Cable

Detach the throttle and choke cables from your carburetor.

5. Remove your Craftsman Mower Air Filter Housing

Remove the hardware that attaches the carburetor to the air filter housing so it is detached.

6. Remove the Springs from Your Craftsman Mower Carburetor

Slowly remove the springs from the carburetor. Do not stretch the springs or you’ll have to replace them. You may have to twist the carburetor a bit to get the springs to come off the carb. Be careful not to rip the gasket between the engine block and the carburetor or you will have to replace it with a new gasket.

7. Remove the Bowl from Your Craftsman Mower Carburetor

Now locate the bowl on the bottom of your carburetor. This is the place a small amount of fuel is collected once it leaves the fuel tank. Have a rag available to soak up any remaining fuel in the bowl.

Remove the screw located at the bottom of the bowl and lower the bowl to remove it from the carburetor. You will find a gasket located around the bowl. It looks like a rubber band. Do not get any carburetor cleaner or other substance on the gasket as it will ruin it. If you do, the gasket must be replaced before the bowl is reattached.

8. Check Your Craftsman Carburetor of Clogged Holes in the Stem

You will find a stem that hangs down in the center of your Craftsman’s carburetor. The holes in the stem can become clogged with the gumming of old fuel. With a flashlight to better see the holes, use a thick wire to unclog them.

9. Remove White Crusty Buildup and Gumming in Your Craftsman Mower Carburetor

Check the other component in your carburetor along with the carburetor itself for additional gumming and a white crusty buildup. Remove the gummy deposits along with as much of the crusty material as possible using a carburetor cleaner. Note: It is almost impossible to remove all the crusty material.

10. Reassemble Your Craftsman Mower Carburetor

Once you have finished cleaning the carburetor in your Craftsman lawn mower and ensured all the components are in good working order including your float needle and float, go ahead and reassemble the carburetor. Reverse the steps you went through when you removed your carburetor. Use the photos you took earlier for reference.

11. Add Fresh Fuel & Allow It to Fill the Fuel Bowl

Make sure you aren’t running old fuel through your Craftsman or you may soon run into the same problems with your carburetor. Use the right type of fuel and allow your fuel bowl to fill with fuel.

Replace or Rebuild Your Craftsman Carburetor When Cleaning is Unsuccessful

Sometimes cleaning your carburetor doesn’t make it carburetor function correctly. You may have small components in your carburetor that must be replaced or old fuel has caused so much damage you need to replace the carburetor.

Rebuild or replace your carburetor. You will need to have your engine model and spec available to ensure you order the correct part(s). Craftsman uses other manufacturers’ small engines in their mowers. You can order a replacement carburetor or rebuild kit online, at your local Craftsman dealership or at an authorized engine dealership.

Fill Your Craftsman Fuel Tank with Fresh Gas and a Fuel Additive

Run a good supply of fresh gasoline through your gas-powered Craftsman lawn mower. Don’t let it sit in your mower for long periods of time. Use a fuel additive to stabilize like Sea Foam Motor Treatment in your fuel to minimize future fuel issues.

Read more about using Sea Foam as a fuel stabilizer and why it is what I use in my lawn mower.

Cleaning Your Craftsman Carburetor Didn’t Solve Your Problem

If cleaning your carburetor didn’t solve your problem and you still have problems in your fuel system. Check out my article, This is Why Your Craftsman Lawn Mower Isn’t Getting Fuel.

If you aren’t sure it is a fuel system problem, I have put together a list of common Craftsman mower problems and solutions where I address starting, fuel system, smoking, overheating, cutting problems and more. You can find it at Common Craftsman Lawn Mower Problems.
